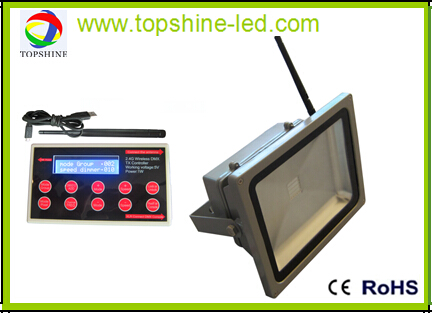

Product Name：TS-COB-W2.4DMX-20W-RGB-HV

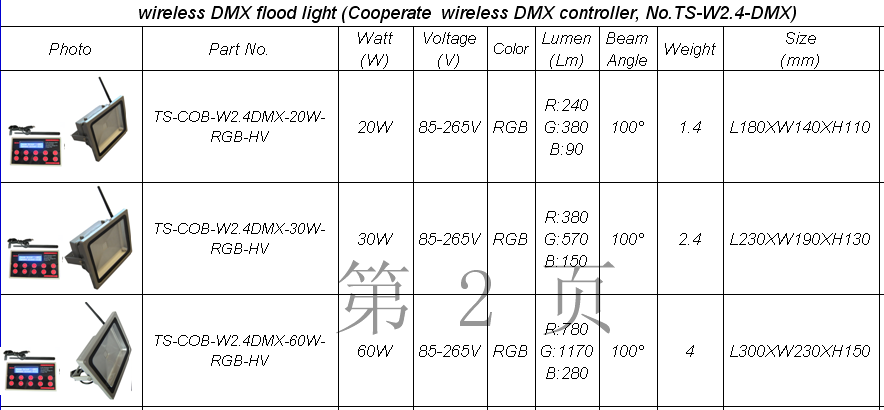

Specification:

1. Voltage: AC85-265V.

2. Watt: 20W

3. Luminous: R:240  G:380  B:90

4. Beam Angle:100°

5. Size: L180XW140XH110

6. Waterproof:  IP65

7. Weight: 1.4KG

8. Long life span, more than 50,000hours.

9. Operating temperature: -20℃-50℃

Function:

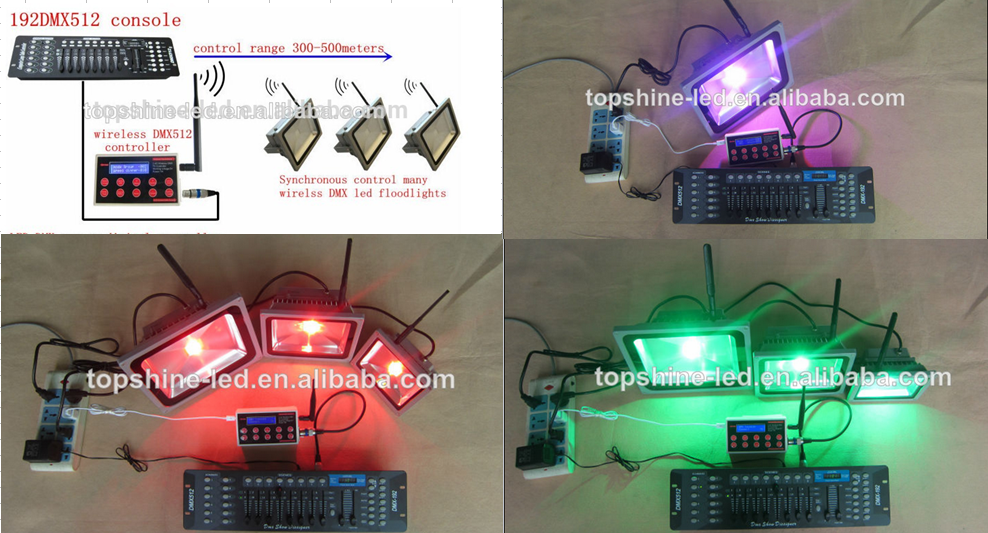

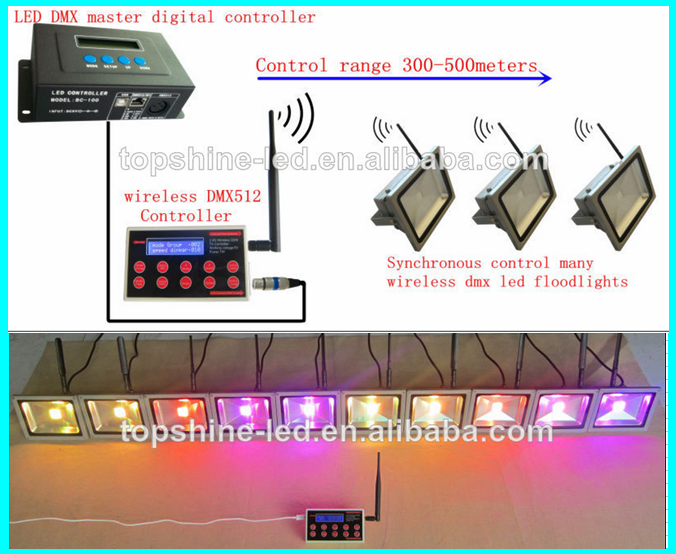

 1. Can put the dmx console or dmx master controller 1-512 address data Transmitted by radio lamp can received signal ,

2. itself have 16 types Synchronous change color patterns and 53 types Pixel patterns can realize “ color flow”,“color chasing”, “overall color changes”,

3.Settings dmx address

4.scope channel (frequency) total of 20 channels(a place 20 group lamp can work independently),

5.Through wireless set the address of the channel and the lamp can lock the data To prevent wrong operation,

Parameter:Control distance:open 300-500m, one dmx controller can control many lights,

Application:

1. Park, Square, outdoor

2. Schools, Colleges & Universities / art galleries.

3. Courtyard / Institution Buildings/ landscaping building

4. bridge, wall washing for bars, clubs, hotels, stages, parks
