Product Name:TS-LR5050-PW-70-IP65-FV

introduction:1.no adapters,Long connection 45-50meters

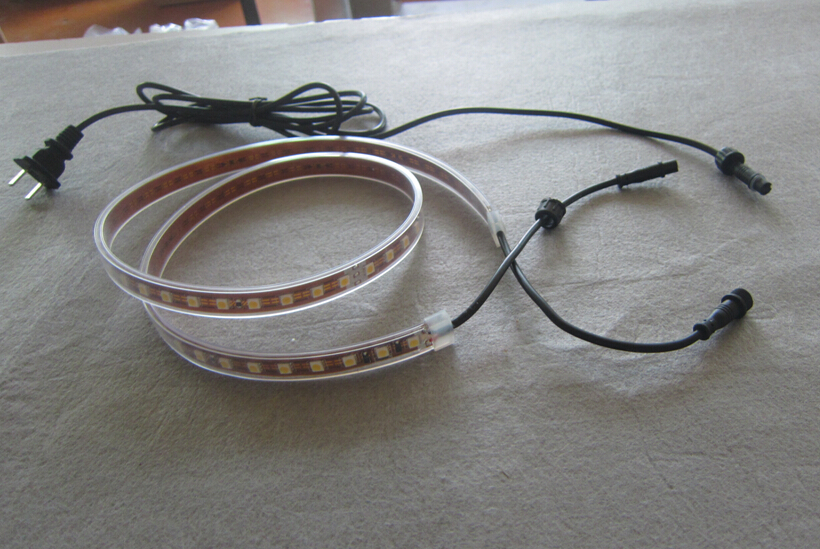

2.Have dimmable function,male and female connector
3.cuttable every 0.5m for AC110V, 1m for AC230
4.CE&RoHS certification
Picture show、Product specifications (Click to enlarge view)
Detailed product description

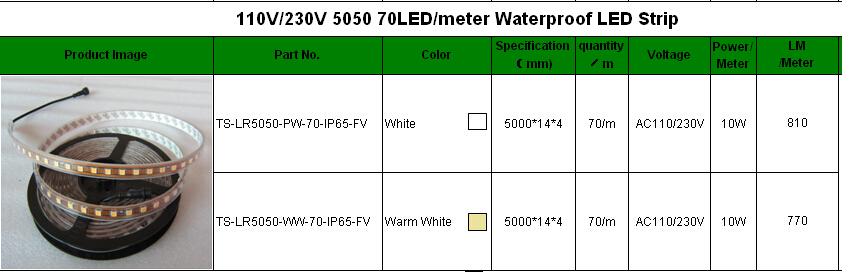

Product NameTS-LR5050-PW-70-IP65-FV

Features:

1. Voltage: AC110/220V. Connect with the AC power directly.

2. LED quantity. 70pc smd5050 LED per meter

3. Watt: 10W/ meter

4. Current: 40mA per meter

5. Luminous: 810lm, super brightness

6. 50cm Cuttable(110V); 100cm Cuttable(220V)

7. Dimension: wide, 14mm,Thickness, 4mm

8. Package: 5meters/reel

9. Beam Angle: 120degree

10. Available white color, warm white and cold white etc.

11. Operating temperature: -20-50

12. Long life span, more than 50,000hours.

13. Adhesive tape back, or clips.

14. Waterproof:  IP65

Application:

1.Architectural decorative lighting

2.Archway, canopy & bridge edge lighting

3. Amusement park, theater & aircraft cabin mood lighting

4.Emergency hallway lighting

5. Auditorium walkway lighting

6. Stairway accent lighting

7.Concealed lighting

8. Backlighting for signage letters

9. Channel letter lighting

10.Cove lighting
